The Rig

A rig is one controller (an Empty) with every light parented to it. Move, rotate or scale the controller and the whole studio follows.

Creating and removing

  • Add Rig creates a rig at the world origin.
  • Apply Kit, Add Light and Fit Rig to Selection create one for you if the scene has none.
  • The trash icon next to Add Rig removes the active rig and everything it made: lights, floor, backdrop and cameras.

A scene can hold several rigs. The Rig field at the top of the panel chooses which one you are editing.

Fit Rig to Selection

Select your model and click Fit Rig to Selection. A collection instance (how a linked asset usually arrives) works too. RedLight:

  1. moves the rig to the base of the model,
  2. scales the studio to the model's size,
  3. moves the floor and backdrop to match,
  4. adjusts light power so the exposure stays the same.

Kits are authored for a subject about 1 m tall, so this is how you light something much bigger or smaller with the same look.

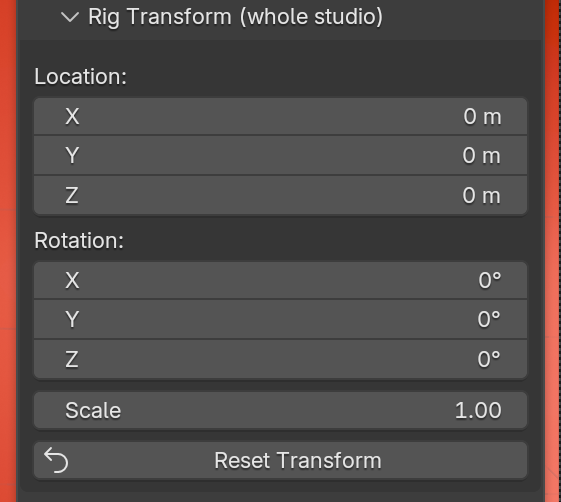

Rig Transform

Rig Transform

Control What it does
Location, Rotation Move and turn the whole studio.
Scale Scales the whole studio. Light power follows, so a bigger studio is not darker.
Reset Transform Back to the world origin, no rotation, scale 1.

Use the Scale slider, not S

Scaling the rig Empty with S in the viewport moves the lights out but doesn't change their power, so a studio twice the size is four times darker, and the Scale slider keeps its old value. Use the Scale slider or Fit Rig to Selection instead.

The floor and backdrop stay put

Rig Transform moves the lights only. The floor, backdrop and cameras are not parented to the rig, so rotating the rig sweeps the light around a fixed set. Fit Rig to Selection moves them, and Reset Transform brings them back with the rig.
